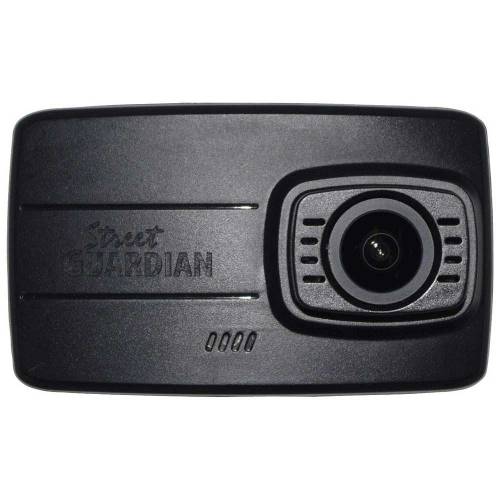

Street Guardian SG9663TD
The SG9663TD is a Dual Channel capable (2 cameras) FULL HD 1080P (both cameras) DashCam Digital Video Recorder.
Features Include:
- Full HD CAR DVR
- NOVATEK 96663 Processor
- SONY EXMOR R CMOS Sensor (Front Camera)
- SONY EXMOR R CMOS Sensor (Optional Rear Camera)
- Full HD (1080p) recording at 30fps (both Cameras)
- 7 Element all glass lens (both cameras)
- H.264 Recording @ up to 18MBit per channel
- GPS Logging
- CPL Filter
At a glance
Full HD Video
Full 1080P HD recording at 30 fps. Files are easily viewed in .mp4 format.
Storage
Available in 32Gb, 64Gb, 128Gb, 256Gb
GPS Logging
All footage is recorded with GPS data included. Speed and coordinates are logged to each video file.
Continuous recording
Set it and forget it. The camera automatically overwrites the oldest files once the memory card is full.
G-sensor
In the event of an impact, G-sensor automatically locks files and restricts overwriting. Files can also be manually protected with the push of the emergency button.
Easy to setup
Intuitive user interface, for easy setup and configuration.
Features
7 Glass Lens
7 element (6 glass + IR cut filter), IR cut, 127° lens
Sony EXMOR R CMOS Sensor
Large pixel native 1080P sensor + WDR means GOOD Night performance
GPS
GPS data logging with time, location and speed.
Multi language enabled
English, Spanish, Russian, Portuguese, German, Italian, Japanese, French, Simplified Chinese, Traditional Chinese
Full HD Recording
Full HD 1080P (both front & rear) at 30fps @ up to 18Mbit/sec, H.264 Encoding MP4 format.
File Protection
Files are protected with automatic file locking to avoid important data being overwritten.
Full Feature List
SG9663TD Full HD 1080p Drive Recorder (optional 2 channel)
The SG9663TD is a WiFi enabled drive recorder. FULL HD 1080P DashCam Video Security Car DVR Appliance. Super-Capacitor + Metal Lens Holder-Base means Extreme Temperature Resistance!
- Novatek 96663 Processor, Sony IMX327 Exmor R CMOS Sensor, 7 element (6 glass + IR cut filter), IR cut, 127° lens resulting in a Crystal Clear Perfectly Focused Sharp Image!
- Full HD 1080P at 30fps @ up to 21Mbit/sec, H.264 Encoding MP4 format, GPS enabled.
- Large pixel native 1080P sensor + WDR means GOOD Night performance. MicroSD Card, USB/OTG Android Card Reader & GPS Logger SGGPSWM Included! Support for microSD cards up to 512GB!
- Optional Rear channel camera – sold separately.
- 2.7 inch HD TFT screen. Plunger mount for easy Install.
- Street Guardian Dashcam Viewer Mobile App compatible – FREE download on the Apple App store or Google Play Store.
- 1 Year No Hassle Warranty. Registration required to extend warranty to 2 years.
*Note: Hard wiring this camera requires an SGTDHW Wiring kit, sold separately.
Specifications:
- Processor: Novatek NT96663
- Lens: 7 Element, Metal chassis, Glass lens, IR cut, 127° viewing angle
- CMOS sensor: Sony Exmor R IMX327
- Video resolution: Full HD 1080P at 30fps @ selectable 15/18/21Mbit/sec – both front & rear camera.
- Video format: H.264 compression, MP4 format
- LCD display: 2.7 inch HD TFT screen
- Microphone: Built-in, on/off menu selectable
- Speaker: Built in
- Storage media: MicroSD card, Minimum 32GB Class10 recommended, 512GB maximum*
- Gapless recording: Supported
- Recording cycle: Menu selectable – 1 min/2min/3 min/5 min
- Date stamped video: Supported
- User selectable speed display: Supported
- Custom user text: Supported
- Soft shutdown: Supported, last file save and soft shutdown
- Screen saver: Supported, menu selectable – 5 min, 3 min, 1 min, 30sec, 15sec, 5sec
- Night mode: Wide dynamic range (WDR)
- Built-in G-sensor: Yes, with adjustable sensitivity
- Incident file protect: Automatic by G-Sensor/Manual emergency by one touch button
- GPS: Included (external)
- Exposure compensation: Menu selectable -2.0 to 2.0
- White balance: Auto
- WiFi: Yes
- Language: English/Spanish/Russian/Portuguese/German/Italian/Japanese/French/Simplified Chinese/Traditional Chinese
- Power supply: Fail-safe Super Capacitor
- RTC (Real Time Clock): Supported
- Dimensions Front (LxWxH): 80 x 32 x 48mm (excluding the bracket)
- Unit Net Weight Front: 66g
*Memory cards must be formatted in camera
User Manual SG9665TD – user manual English
Street Guardian Dashcam Viewer Mobile App
Download the Street Guardian Dashcam Viewer Mobile App. Available on the Apple App Store and Google Play store.
