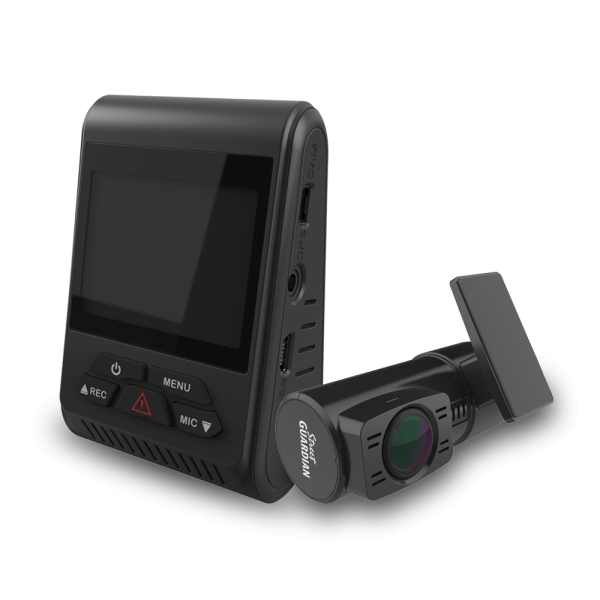

SG9663DCPRO+ Dual Channel Full HD 1080p Drive Recorder
The SG9663DCPRO+ is a Dual Channel (Front & rear) drive recorder. FULL HD 1080P DashCam Video Security Car DVR Appliance. Super-Capacitor + Metal Lens Holder-Base means Extreme Temperature Resistance
- Novatek 96663 Processor, Sony Exmor R CMOS Sensor (Front & Rear), 7 element (6 glass + IR cut filter), IR cut, 127° lens resulting in a Crystal Clear Perfectly Focused Sharp Image!
- Full HD 1080P at 30fps (both Front & Rear) @ up to 18Mbit/sec, H.264 Encoding MP4 format, GPS enabled.

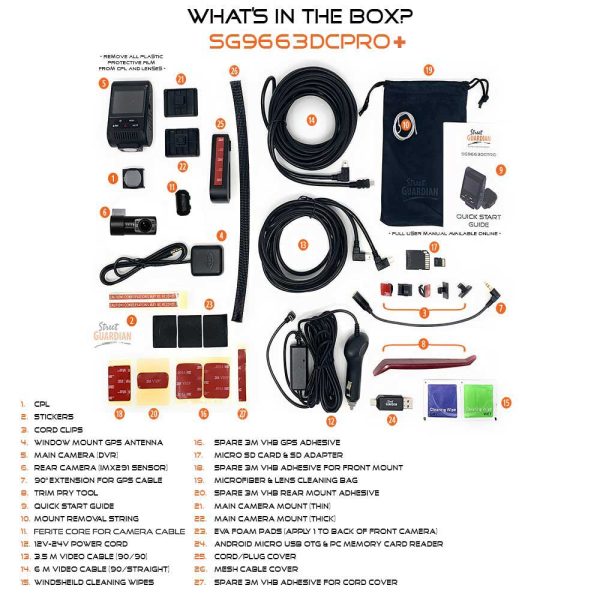

- Large pixel native 1080P sensor + WDR means GOOD Night performance. Clip on CPL, microSD Card, USB/OTG Android Card Reader & GPS Logger SGGPSWM Included! Support for microSD cards up to 512GB!
- 2.0-inch HD TFT screen. Ultra-Compact Glass Hugging Stealthy Install.
- Street Guardian Dashcam Viewer Mobile App compatible – FREE download on the Apple App store or Google Play Store.
- 1 Year No Hassle Warranty. Registration required to extend warranty to 2 years.
*Note: Hard wiring this camera requires an SGDCHW Wiring kit, sold separately.
- Processor: Novatek NT96663
- Lens: 7 Element, Metal chassis, Glass lens, IR cut, 127° viewing angle
- CMOS sensor: Sony Exmor R (Front & Rear)
- Video resolution: Full HD 1080P at 30fps @ selectable 12/15/18Mbit/sec – both front & rear camera.
- Video format: H.264 compression, MP4 format
- LCD display: 2.0-inch HD TFT screen
- Microphone: Built-in, on/off menu selectable
- Speaker: Built in
- Storage media: MicroSD card, Minimum 32GB Class10 recommended, 512GB maximum*
- Gapless recording: Supported
- Recording cycle: Menu selectable – 1 min/2min/3 min/5 min
- Date stamped video: Supported
- User selectable speed display: Supported
- Custom user text: Supported
- Soft shutdown: Supported, last file save and soft shutdown
- Screen saver: Supported, menu selectable – 5 min, 3 min, 1 min, 30sec, 15sec, 5sec
- Night mode: Wide dynamic range (WDR)
- Built-in G-sensor: Yes, with adjustable sensitivity
- Incident file protect: Automatic by G-Sensor/Manual emergency by one touch button
- GPS: Included (external)
- Exposure compensation: Menu selectable -2.0 to 2.0
- White balance: Auto
- Language: English/Spanish/Russian/Romanian/Portuguese/German/Italian/Japanese/French/Simplified Chinese/Traditional Chinese
- Power supply: Fail-safe Super Capacitor (90° connector at camera input)
- RTC (Real Time Clock): Supported
- Dimensions Front (LxWxH): 85 x 52 x 35mm (excluding the bracket)
- Unit Net Weight Front: 75g
- Dimensions Rear (LxWxH): 75 x 35mm (excluding the bracket)
- Unit Net Weight Rear: 30g
*Memory cards must be formatted in camera
IMPORTANT NOTE ABOUT THE REAR CAMERA CONNECTION CABLE:
IF USING THE LONG CABLE, PLEASE ENSURE STRAIGHT CONNECTOR IS INSERTED INTO THE REAR CAMERA.
IF USING THE SHORT CABLE, THE LONGEST CONNECTOR IS INSERTED INTO THE REAR CAMERA, THE SHORTEST CONNECTOR IS INSERTED INTO THE FRONT CAMERA.
