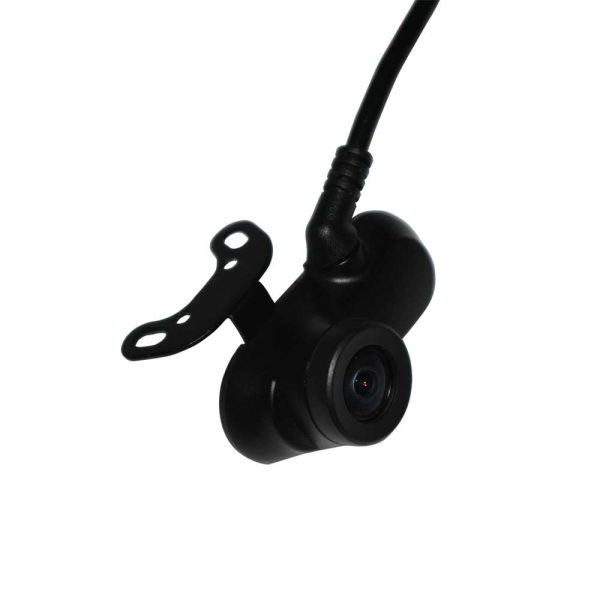

The Street Guardian X2WRC323 is an optional Waterproof camera for the SGGCX2PRO.

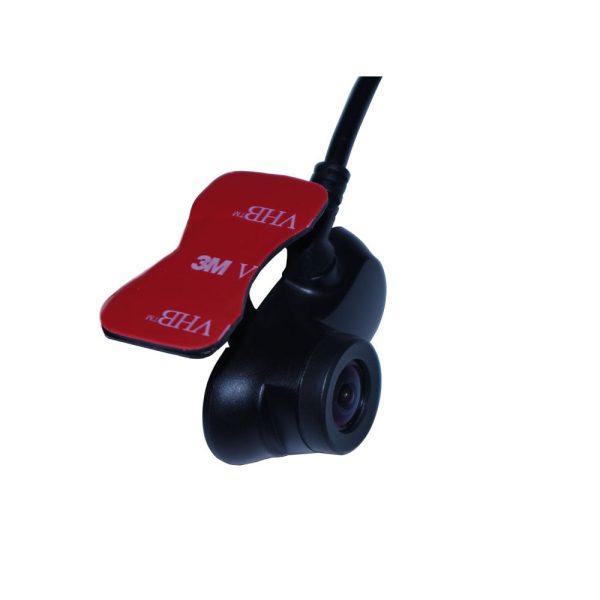

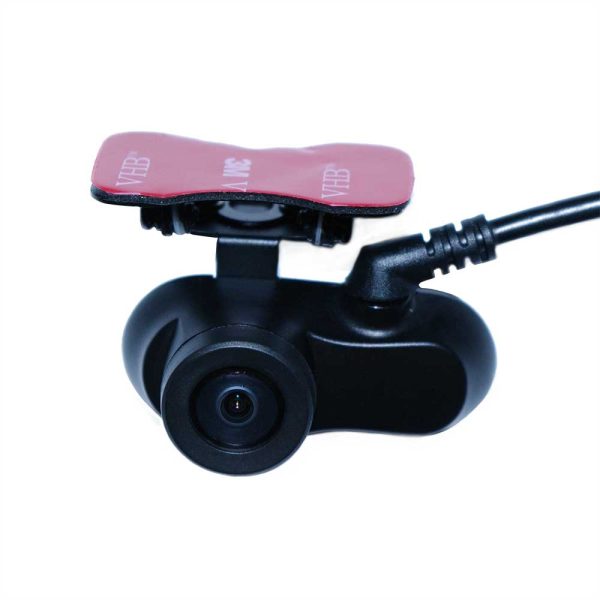

This unit comes with an adjustable pivoting adhesive mount, which can be removed allowing for flexible mounting possibilities.
Using the shorter 25cm (10 inch) cable, you can also mount this unit inside the vehicle facing towards the driver and passengers – ideal for use in taxis etc.
- Lens: 7 Element, Metal chassis, Glass lens, IR cut, medium wide horizontal viewing angle
- CMOS sensor: Sony Exmor
- Cable: 6M cable to suit included, 25cm (10 inch) short cable also included
- WaterProof: IP67

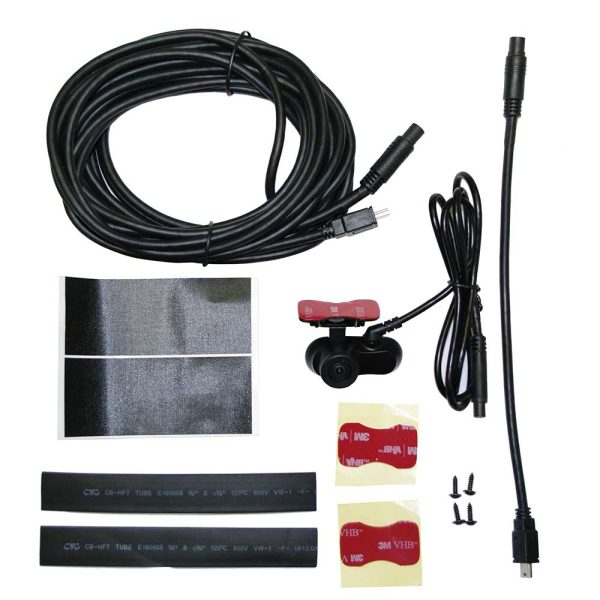

Included in kit:
Main camera including 1M of cable x 1
6M cable x 1 (Total Cable length of 7M or 22’9″ approx.)
25cm (10 inch) cable x 1

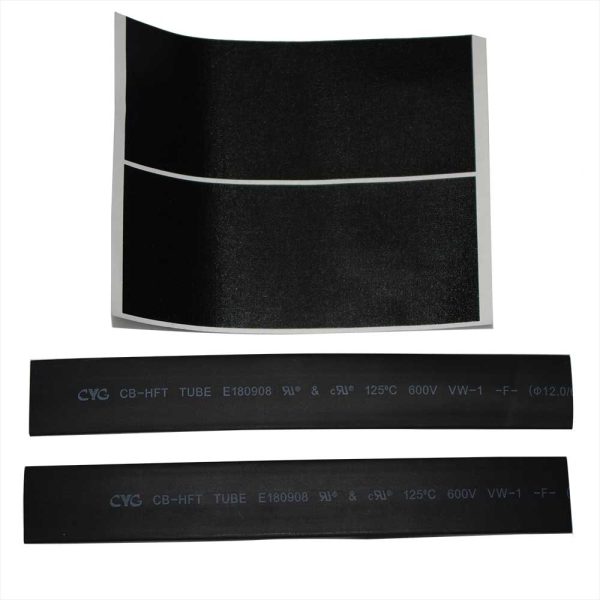

Conductive tape strips x 2
Heat Shrink x 2
Spare 3M Adhesive x 2
Short cable x 1
Mounting screws x 4
NOTE: Cables can not be extended due to proprietary connectors and signal requirements.
How to connect cables
