The Street Guardian plug in fuse tap for hardwire kits makes hardwiring a simple remove and replace task.
To install the fuse tap, remove the appropriate existing fuse, insert the fuse tap in the original fuse location and then insert the original fuse and extra fuse into the fuse tap.
All fuse taps when wired correctly should contain 2 fuses.
1 x Fuse Tap
1 x Fuse

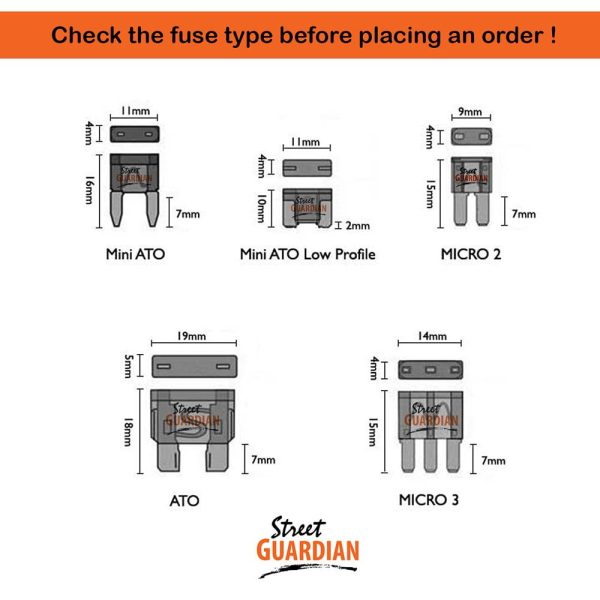

Fuse Types available:

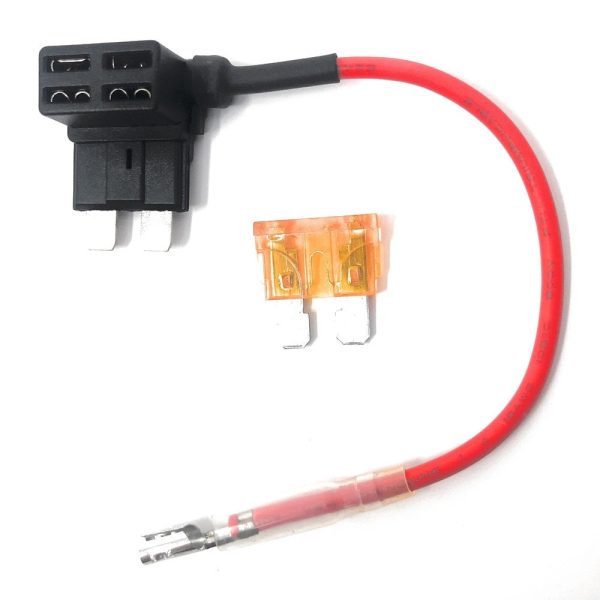

- TAPATO – ATO regular fuse

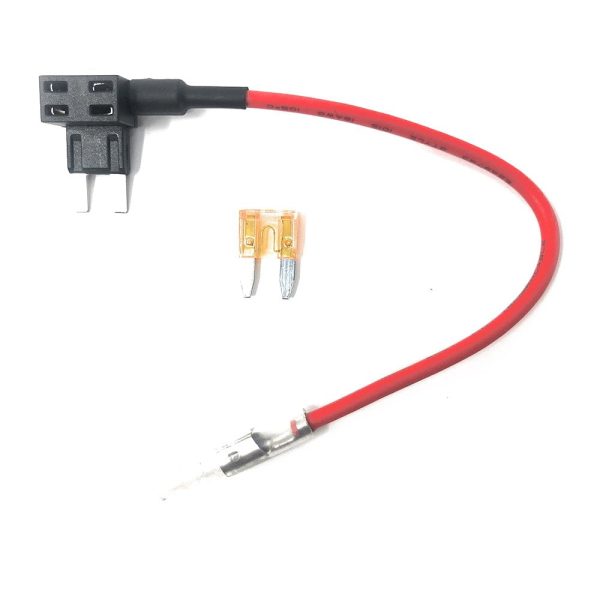

- TAPMINI – Mini fuse (Included with CPUSBMW)

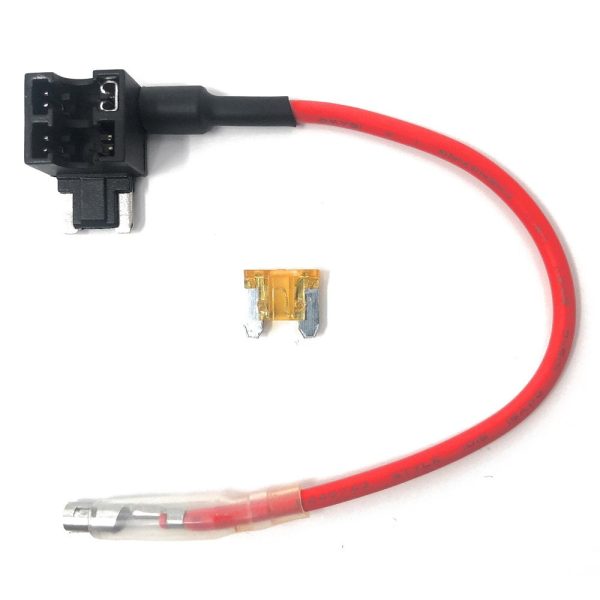

- TAPLPM – Low profile mini fuse

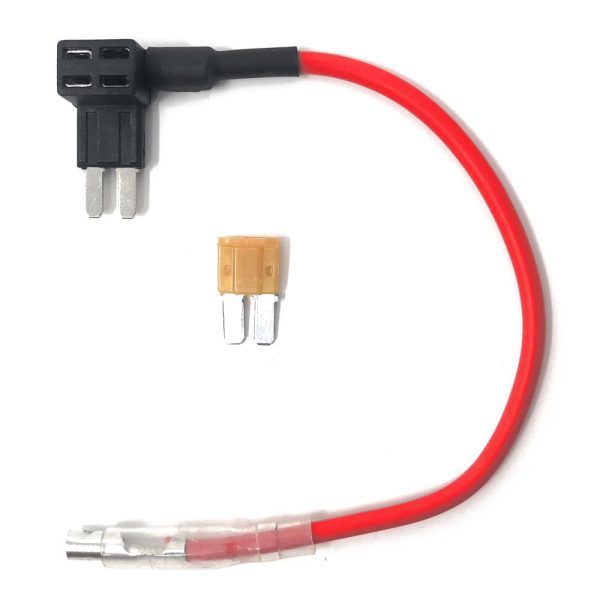

- TAPM2 – Micro 2 fuse

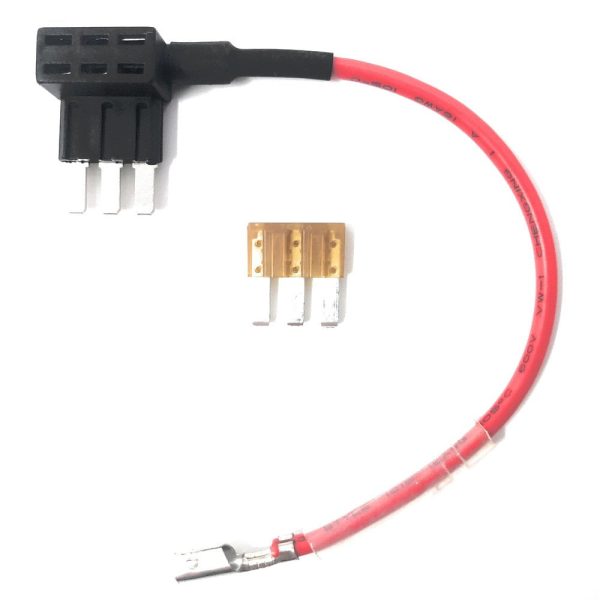

- TAPM3 – Micro 3 fuse
NOTE: Fuse panel layout and designs may inhibit installation on some vehicles. Some fuse panels (such as newer Fords) are smaller around the socket – you may need to file the corners of the fuse tap to enable smooth insertion. Fuse taps are compatible with 95% of vehicle manufacturers.
